FMPC156-E-11I7TC32G512G-N-P3R2B
- Regular price
- $4,069.00
- Sale price
- $4,069.00
- Regular price
-
- Unit price
- per

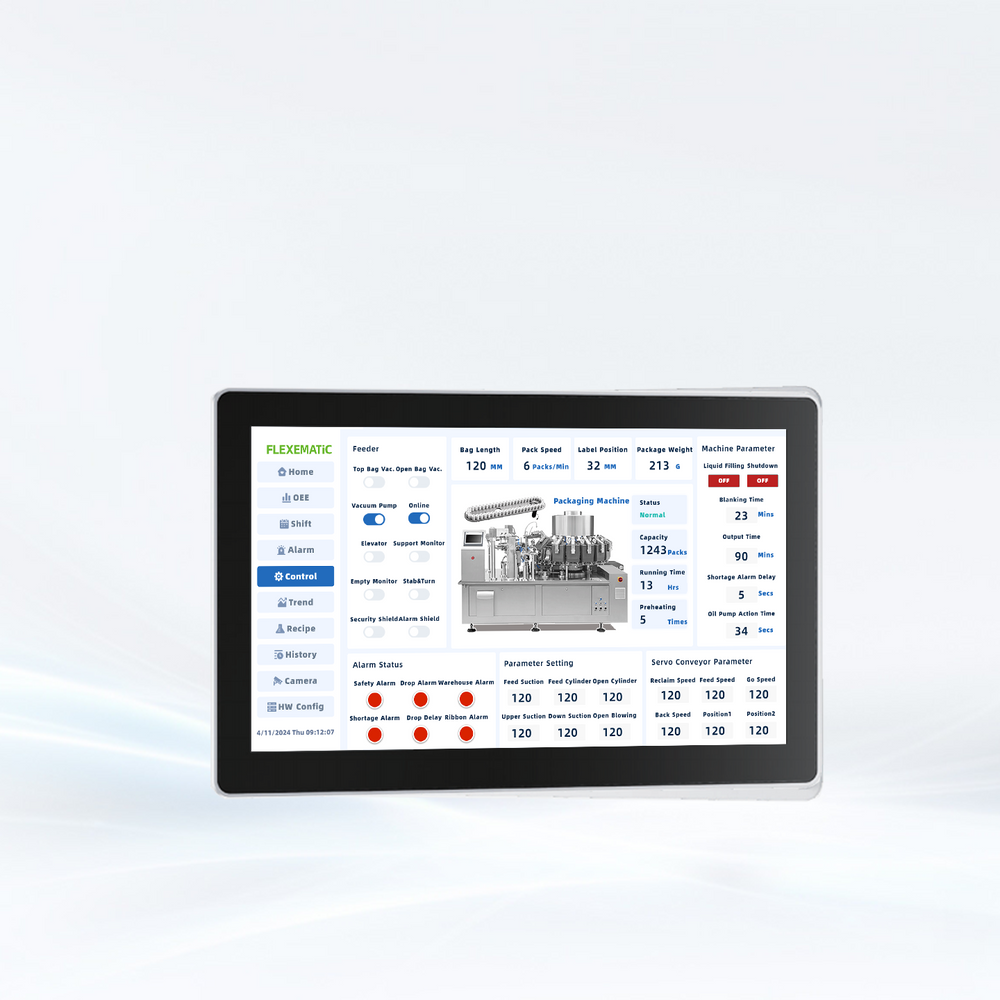

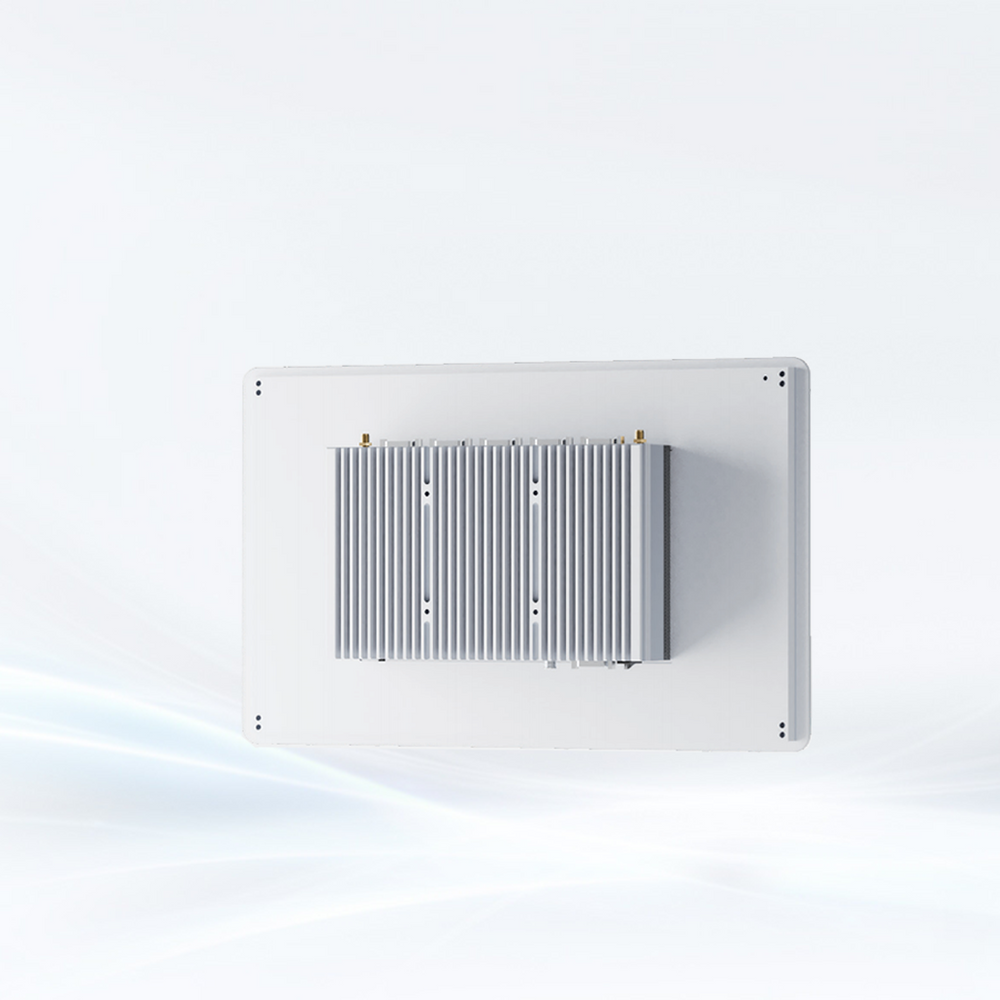

Ultra - thin fanless tablet PC with an all - aluminum body. Intel® Core i3-1115G4,dual-core and four-thread,with a frequency range of 3.0-4.1GHz;i5- 1155G7;i5-1135G7,quad-core and eight-thread,with a frequency range of 2.5-4.5GHz;i7- 1165G7,quad-core and eight-thread,with a frequency range of 2.8-4.7GHz. DDR4 high-speed memory,supporting 8G/16G/32G;SSD solid-state drive,supporting 128G/256G/512G/1T.
Availability:
In stock
Out of stock
Couldn't load pickup availability
| FEATURES | FMPC156-E-11I7TC32G512G-N-P3R2B |
| CPU | Intel®Core i7-1165G7 |
| Frequency | Quad-core and eight-thread,with a main frequency of 2.5~4.5GHz |
| Memory | Supports DDR4 high-speed memory,with options of 32GB |
| Storage | 1*3.0” SATA+1M.2 2280 M-key slot;SSD (Solid State Drive),supporting 512GB |
| Network | 2*Intel 1000Mbps RJ-45 Ethernet ports |
| Audio | Realtek®HDA Codec,with MIC/Line-out and Amplifier |
| USB | 4*USB 3.0 |
| Serial Port | 3*RS-232(COM2/COM3/COM4);2*RS-232/RS-485(COM5/COM6) |
| Expansion Slot | ◆ 1*M.2 2242/50 B-Key card slot,supporting 4G;WIFI wireless NIC |
| Other Port | 1*HDMI/DC-IN |
| Dimensions (W*H*D) | 392mm*246mm*62mm |
| Cutout Dimensions (W*H) | 378mm*234mm(1.80/1.90mm larger than the actual hole opening size) |
| Weight | 3.18kg |
| Operating System | support Windows10 and Linux. |
| Rated Power | 9~36V DC(powered by terminal block) |
| Maximum Power Consumption | 32W |
| Display Device | 15.6" Full HD TFT |
| Resolution | 1920*1080 |
| Colors | 16.7MB |
| Backlight | LED |
| Backlight MTBF(hour) | 15000 |
| Pixel Pitch | 0.197*0.197 |
| Brightness | 250cd/m2 |
| Contrast Ratio | 400:1 |
| Viewing angle | (L)89° /(R)89° /(T)89° /(B)89° |
| Touch Panel | 10-point capacitive touchscreen |
| Light Transmittance | >85% |
| Controller | USB port |
| Response Time(Touch Pen) | <5ms |
| Surface Hardness | Mohs hardness 6H |
| Touch Life | 35,000,000 times at 250g |
| Stroke Life | 5,000,000 times at 250g |
| Operating Temperature | 0~50° C(32~122°F)(using ordinary temperature grade SSD) |
| Customized Version | -20~60° C(-4~140°F)(using wide temperature grade SSD) |
| Storage Temperature | -20~60° C(-4~140°F) |
| Relative Humidity |
10~95% RH@40℃,non-condensing |
| Vibration during Operation |
SSD applied:1.5G,5~500Hz,1hr/axis |
| Shock during Operation |
SSD applied:10G,half-sine wave |
| EMC | CE/FCC Class B |
| IP rating | The front panel reaches the IP65 protection level |
